VBC1307 N-Channel MOSFET

VBC1307 N-Channel 30 V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) () 30 0.007 at VGS = 10 V 0.009 at VGS = 4.5 V ID (A)a 10.

VBC1307-VBsemi.pdf

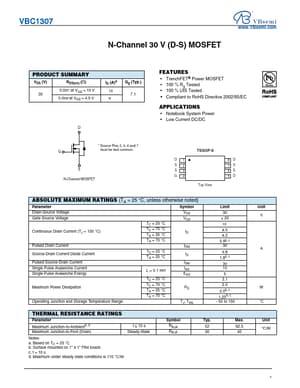

VBC1307 Datasheet Preview — Preview of VBC1307 PDF

Datasheet Details

Part number:

VBC1307

Manufacturer:

VBsemi

File Size:

271.43 KB

Description:

N-Channel MOSFET

Features

* TrenchFETPower MOSFET
* 100 % Rg Tested
* 100 % UIS Tested

Applications

* Notebook System Power
* Low Current DC/DC
* Source Pins 2, 3, 6 and 7 G must be tied common. S N-Channel MOSFET D1 S2 S3 G4 TSSOP-8 Top View 8D 7S 6S 5D ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Drain-Source Voltage Gate-Source Vo
