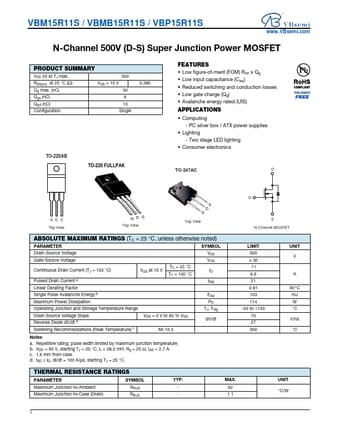

VBM15R11S Datasheet, Mosfet, VBsemi

✔ VBM15R11S Features

Low figure-of-merit (FOM) Ron x Qg
Low input capacitance (Ciss)
Reduced switching and conduction losses
Low gate charge (Qg)
Avalanche energy rated (UIS) APPLIC

✔ VBM15R11S Application

Computing - PC silver box / ATX power supplies
Lighting - Two stage LED lighting
Consumer electronics

PDF File Details

VBsemi manufacturer logo

Part number:

VBM15R11S

Manufacturer:

VBsemi

File Size:

354.29kb

Download:

📄 Datasheet

Description:

N-channel power mosfet.

📥 Download PDF (354.29kb)
