VBZ2305
VBsemi
258.24 KB
P-channel mosfet.
VBZ2305
www.VBsemi.com

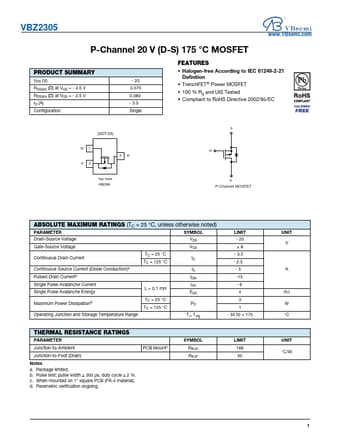

P-Channel 20 V (D-S) 175 °C MOSFET
PRODUCT SUMMARY
VDS (V) RDS(on) () at .
VGS = - 4.5 V RDS(on) () at VGS = - 2.5 V ID (A) Configuration
- 20 0.075 0.080 - 3.5 Single
FEAT.
