VBZ2310
VBsemi
271.92 KB
N-channel mosfet.

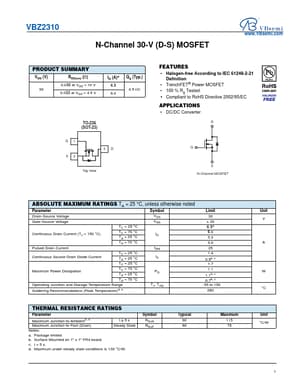

VBZ2310
N-Channel 30-V (D-S) MOSFET
www.VBsemi.com
PRODUCT SUMMARY
VDS (V)
RDS(on) (Ω)
0.030 at VGS = 10 V 30
0.033 at VGS = 4.5 V
ID (A)a 6.5 .
* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET
* 100 % Rg Tested
* Compliant to RoHS Directive 2002/95/EC APPLICATIONS
* DC/DC Converter D G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Param
