VS150N08BT N-Channel 80V MOSFET

VBsemi

Description

VS150N08BT-VB VS150N08BT-VB Datasheet N-Channel 80 V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) MAX.80 0.0028 at VGS = 10 .

📥 Download Datasheet

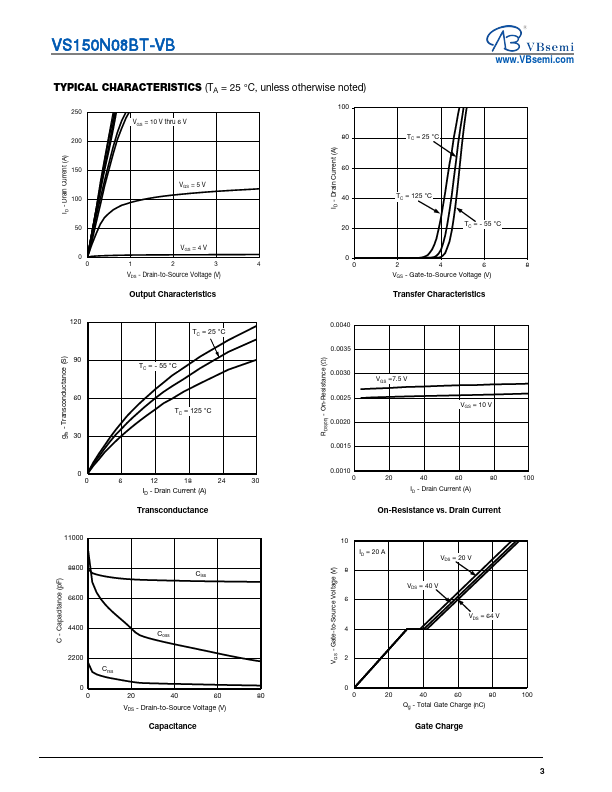

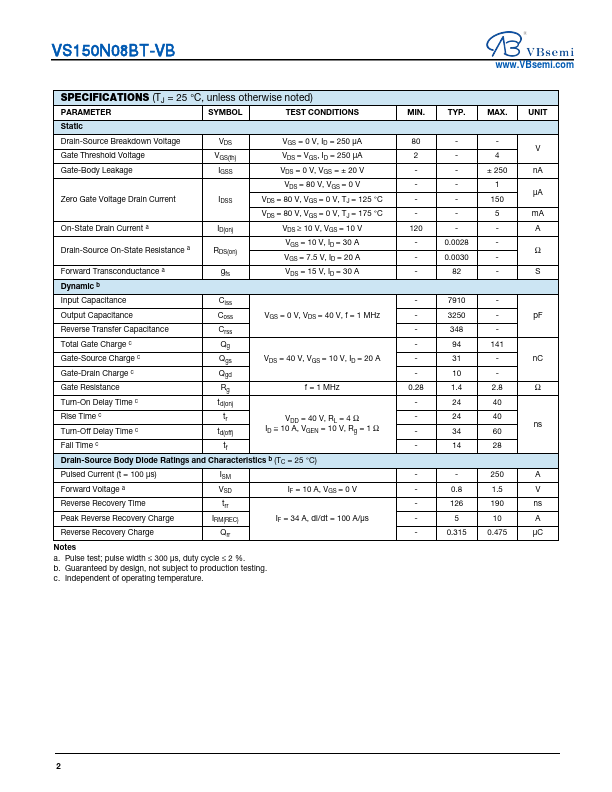

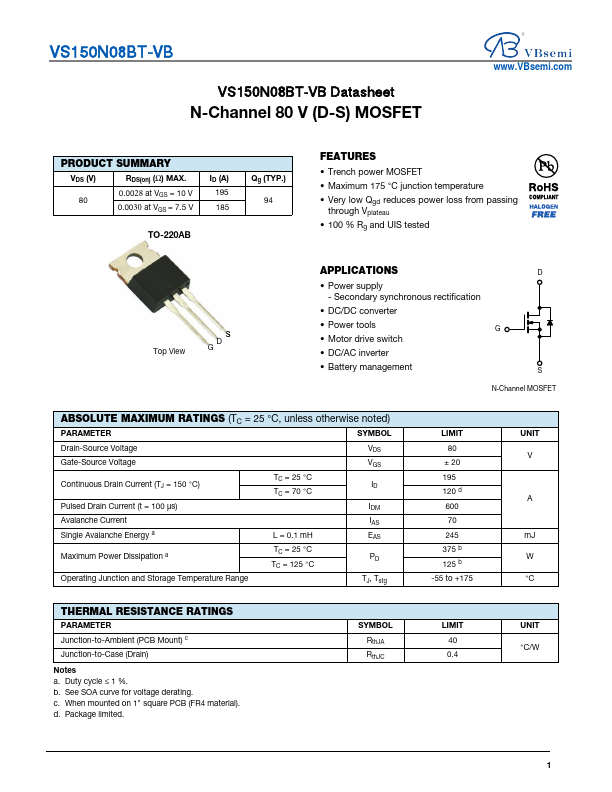

VS150N08BT Datasheet Preview — Preview of VS150N08BT PDF

Datasheet Specifications

Part number: VS150N08BT
Manufacturer: VBsemi
File Size: 209.01 KB
Datasheet: VS150N08BT-VBsemi.pdf
Description: N-Channel 80V MOSFET

Features

* Trench power MOSFET
* Maximum 175 °C junction temperature
* Very low Qgd reduces power loss from passing through Vplateau

Applications

* D
* Power supply - Secondary synchronous rectification
* DC/DC converter
* Power tools G
* Motor drive switch
* DC/AC inverter
* Battery management S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) PARAMETER
