VSE008P03MS P-Channel 30V MOSFET

VBsemi

Description

VSE008P03MS-VB VSE008P03MS-VB Datasheet P-Channel 30 V (D-S) MOSFET www.VBsemi.com VDS RDS(on),typ VGS=10V RDS(on),typ VGS=4.5V ID -30 V 11 mΩ 18 m.

📥 Download Datasheet

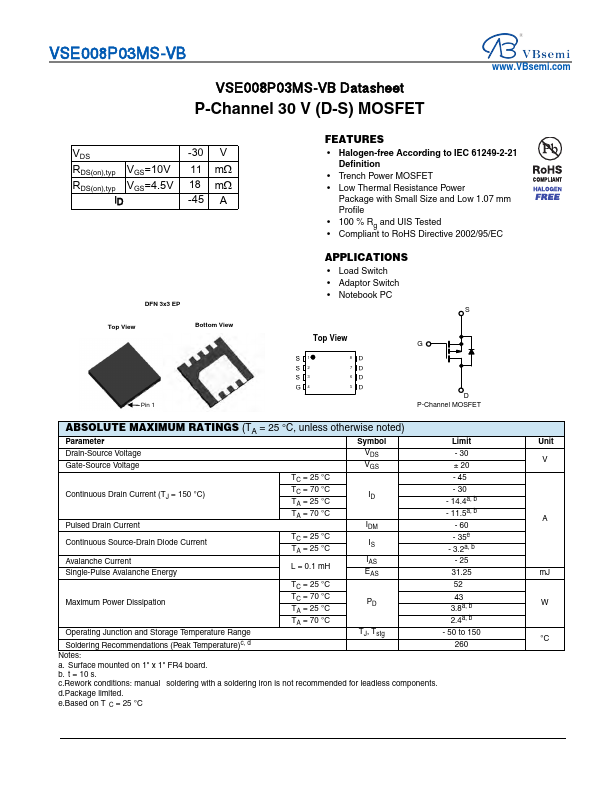

VSE008P03MS Datasheet Preview — Preview of VSE008P03MS PDF

Datasheet Specifications

Part number: VSE008P03MS
Manufacturer: VBsemi
File Size: 358.97 KB
Datasheet: VSE008P03MS-VBsemi.pdf
Description: P-Channel 30V MOSFET

Features

* Halogen-free According to IEC 61249-2-21 Definition
* Trench Power MOSFET
* Low Thermal Resistance Power Package with Small Size and Low 1.07 mm Profile
* 100 % Rg and UIS Tested
* Compliant to RoHS Directive 2002/95/EC DFN 3x3 EP Top View Bottom View Pi

Applications

* Load Switch
* Adaptor Switch
* Notebook PC S Top View 1 8 2 7 3 6 4 5 G D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Limit Unit Drain-Source Voltage Gate-Source Voltage VDS VGS - 30 V ± 20 TC = 25 °C -
