VSE003N04MS-G 40V/40A N-Channel Advanced Power MOSFET

Description

VSE003N04MS-G 40V/40A N-Channel Advanced Power MOSFET .

📥 Download Datasheet

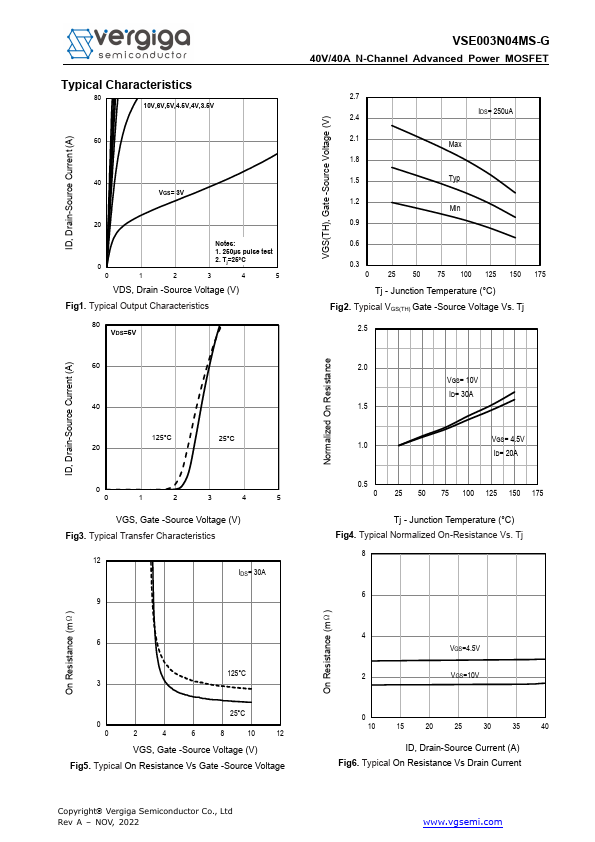

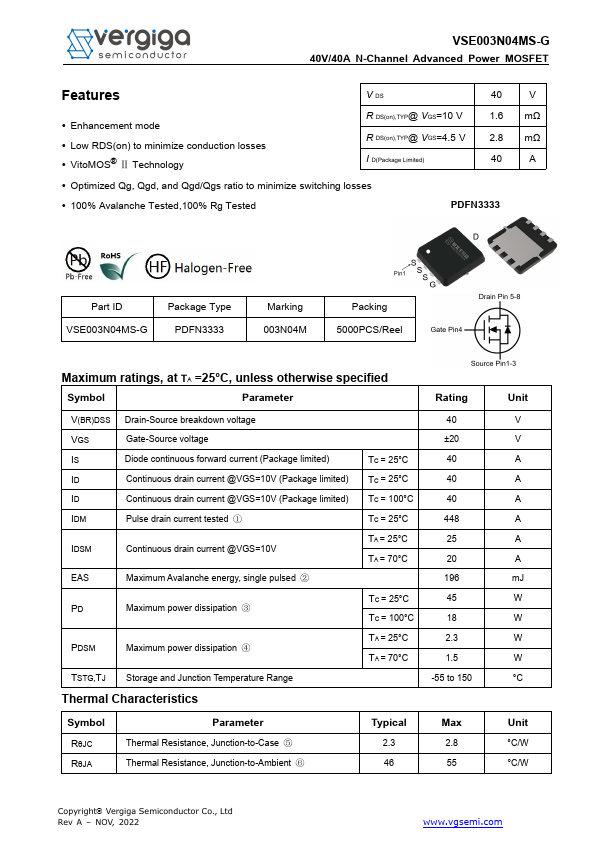

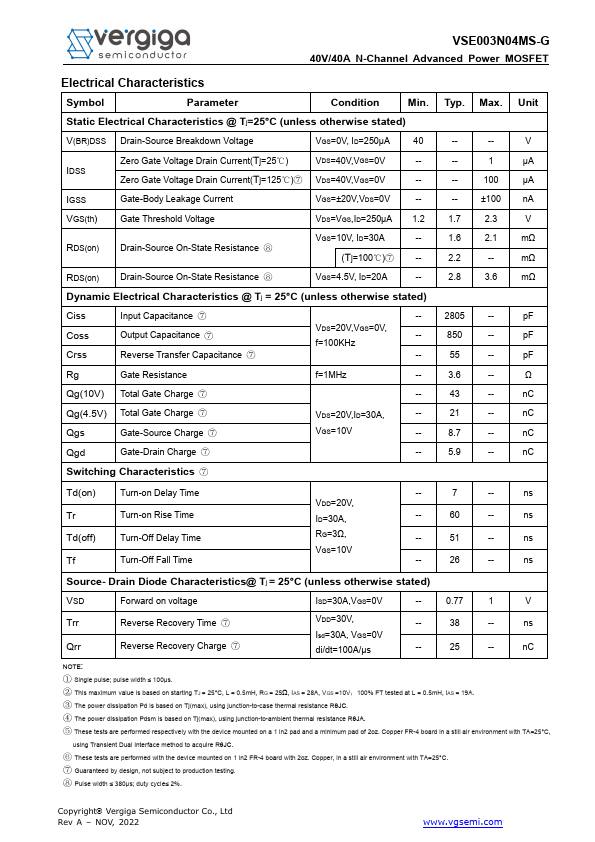

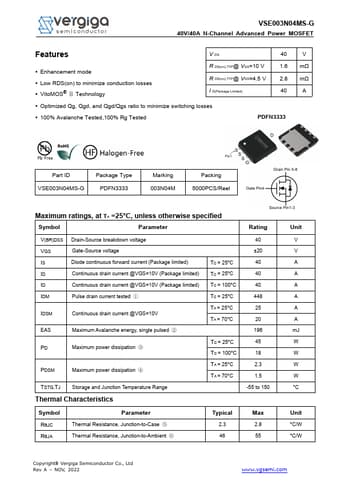

VSE003N04MS-G Datasheet Preview — Preview of VSE003N04MS-G PDF

Datasheet Specifications

Part number: VSE003N04MS-G
Manufacturer: Vergiga
File Size: 926.88 KB
Datasheet: VSE003N04MS-G-Vergiga.pdf
Description: 40V/40A N-Channel Advanced Power MOSFET

Features

* V DS 40 V
* Enhancement mode
* Low RDS(on) to minimize conduction losses
* VitoMOS® Ⅱ Technology R @ DS(on),TYP VGS=10 V R @ DS(on),TYP VGS=4.5 V I D(Package Limited) 1.6 mΩ 2.8 mΩ 40 A
* Optimized Qg, Qgd, and Qgd/Qgs ratio to minimize switching losses
* 100% Avalanch

VSE003N04MS-G Distributors
