VCC1-103 Datasheet - VECTRON

VCC1-103 (VCC1-103 / -105) Crystal Oscillators

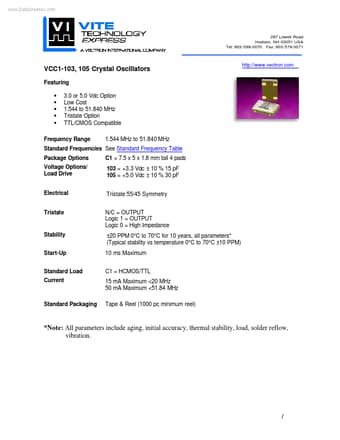

www.DataSheet4U.com 267 Lowell Road Hudson, NH 03051 USA Tel: 603-598-0070 Fax: 603-578-3071 VCC1-103, 105 Crystal Oscillators Featuring 3.0 or 5.0 Vdc Option Low Cost 1.544 to 51.840 MHz Tristate Option TTL/CMOS Compatible 1.544 MHz to 51.840 MHz C1 = 7.5 x 5 x 1.8 mm tall 4 pads 103 = +3.3 Vdc ± 10 % 15 pF 105 = +5.0 Vdc ± 10 % 30 pF Tristate 55/45 Symmetry N/C = OUTPUT Logic 1 = OUTPUT Logic 0 = High Impedance ±20 PPM 0°C to 70°C for 10 year.

VCC1-103 Datasheet (70.18 KB)
