VCC1-105, VCC1-103 Datasheet - VECTRON

VCC1-105 - (VCC1-103 / -105) Crystal Oscillators

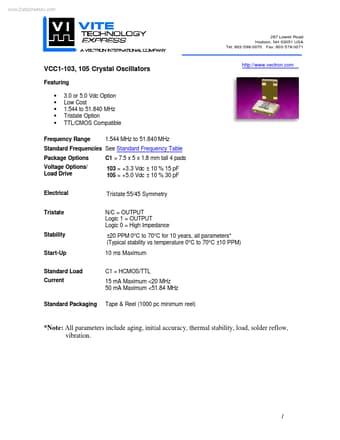

www.DataSheet4U.com 267 Lowell Road Hudson, NH 03051 USA Tel: 603-598-0070 Fax: 603-578-3071 VCC1-103, 105 Crystal Oscillators Featuring 3.0 or 5.0 Vdc Option Low Cost 1.544 to 51.840 MHz Tristate Option TTL/CMOS Compatible 1.544 MHz to 51.840 MHz C1 = 7.5 x 5 x 1.8 mm tall 4 pads 103 = +3.3 Vdc ± 10 % 15 pF 105 = +5.0 Vdc ± 10 % 30 pF Tristate 55/45 Symmetry N/C = OUTPUT Logic 1 = OUTPUT Logic 0 = High Impedance ±20 PPM 0°C to 70°C for 10 year

VCC1-103_VECTRON.pdf

This datasheet PDF includes multiple part numbers: VCC1-105, VCC1-103. Please refer to the document for exact specifications by model.
VCC1-105 Datasheet Preview Page 2

Datasheet Details

Part number:

VCC1-105, VCC1-103

Manufacturer:

VECTRON

File Size:

70.18 KB

Description:

(vcc1-103 / -105) crystal oscillators.

Note:

This datasheet PDF includes multiple part numbers: VCC1-105, VCC1-103.
Please refer to the document for exact specifications by model.
