* －For use in low voltage, high frequency inverters, free wheeling and polarity protection applications －Low power loss, high efficiency －High current capability, low forward voltage drop －High surge capability －Guardring for overvoltage protection －Ultra high-speed switching －Silicon epitaxial planar
MBR30150CT Datasheet (248.73 KB)
MBR30150CT
VIKING TECH
248.73 KB
High power schottky diode.

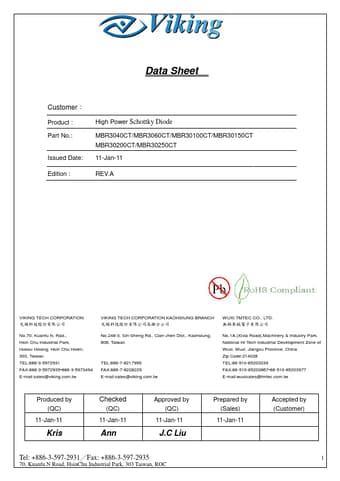

Data Sheet
Customer： Product : Part No.:
Issued Date:
High Power Schottky Diode
MBR3040CT/MBR3060CT/MBR30100CT/MBR30150CT MBR30200CT/MBR30250CT 11-J.
