VS1011b - MP3 AUDIO CODEC

Datasheet Summary

Description

VS1011b is a single-chip MP3 audio decoder.

Features

  • Decodes MPEG 1 & 2 audio layer 3 (ISO 11172-3), WAV and PCM files.
  • Supports VBR (variable bitrate) for MP3.
  • Stream support.
  • Can be used as a slave co-processor.
  • Operates with single clock 12.288..14 MHz or 24.576..28 MHz.
  • Low-power operation.
  • High-quality stereo DAC with no phase er- ror between channels.
  • Stereo earphone driver capable of driving a 30Ω load.
  • Separate 2.5 . . 3.6V operating voltages for analog and di.

📥 Download Datasheet

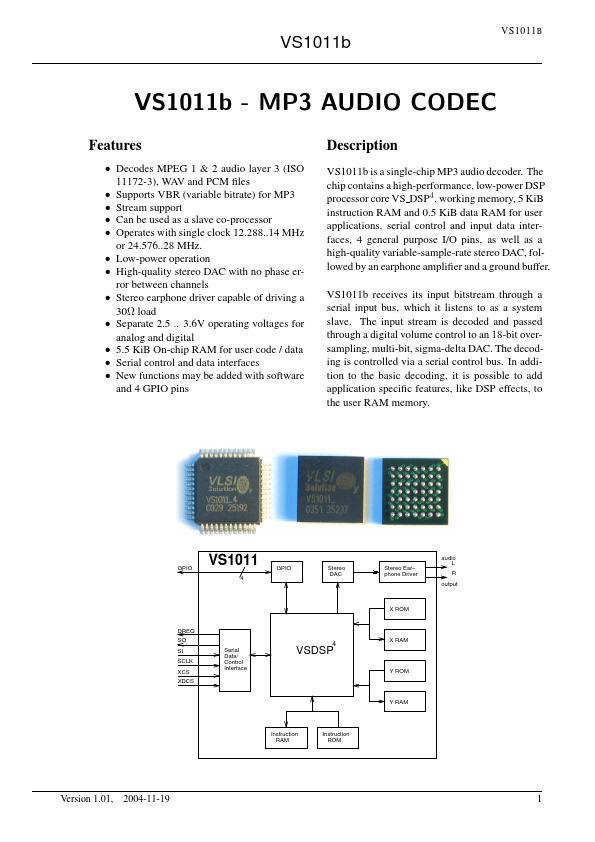

Datasheet preview – VS1011b

Datasheet Details

Part number VS1011b
Manufacturer VLSI
File Size 431.42 KB
Description MP3 AUDIO CODEC
Datasheet download datasheet VS1011b Datasheet
Additional preview pages of the VS1011b datasheet.

📁 Similar Datasheet

  • VS100 - HDBaseT Transmitter / Receiver (Valens)
  • VS1000 - Single axis analog accelerometer (SAFRAN)
  • VS100RX - HDBaseT Transmitter / Receiver (Valens)
  • VS100TX - HDBaseT Transmitter / Receiver (Valens)
  • VS1 - AC-DC / Configurable (Emerson)
  • VS1 - Micro Vibration Sensor (Sensolute)
  • VS11VUA1LAM - Transient Voltage Suppressor (ROHM)
  • VS12HBE - SCR (HAOHAI)
  • VS12MBE - SCR (HAOHAI)
  • VS12SBE - SCR (HAOHAI)
Other Datasheets by VLSI

Full PDF Text Transcription

Click to expand full text
VS1011b VS1011B VS1011b - MP3 AUDIO CODEC Features • Decodes MPEG 1 & 2 audio layer 3 (ISO 11172-3), WAV and PCM files • Supports VBR (variable bitrate) for MP3 • Stream support • Can be used as a slave co-processor • Operates with single clock 12.288..14 MHz or 24.576..28 MHz. • Low-power operation • High-quality stereo DAC with no phase er- ror between channels • Stereo earphone driver capable of driving a 30Ω load • Separate 2.5 .. 3.6V operating voltages for analog and digital • 5.5 KiB On-chip RAM for user code / data • Serial control and data interfaces • New functions may be added with software and 4 GPIO pins Description VS1011b is a single-chip MP3 audio decoder.
