VS8053b AUDIO PROCESSOR

VS8053b Description

VS8053b Datasheet VS8053b - AUDIO PROCESSOR WITH Ogg Vorbis / FLAC / WAV SUPPORT .
Laser-fused version of VS1053b. Decodes Ogg Vorbis; FLAC with software plugin; WAV (PCM + IMA ADPCM). Encodes Ogg Vorbis.

VS8053b Applications

* running simultaneously with built-in decoders, serial control and input data interfaces, up to 8 general purpose I/O pins, an UART, as well as a high-quality variable-sample-rate stereo ADC (mic, line, line + mic or 2×line) and stereo DAC, followed by an earphone amplifier and a common voltage buffer

📥 Download Datasheet

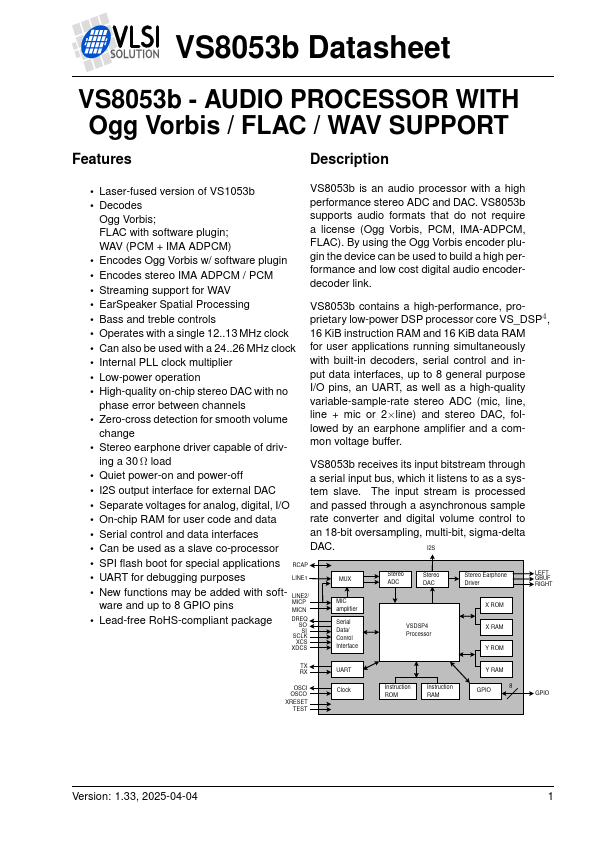

Preview of VS8053b PDF

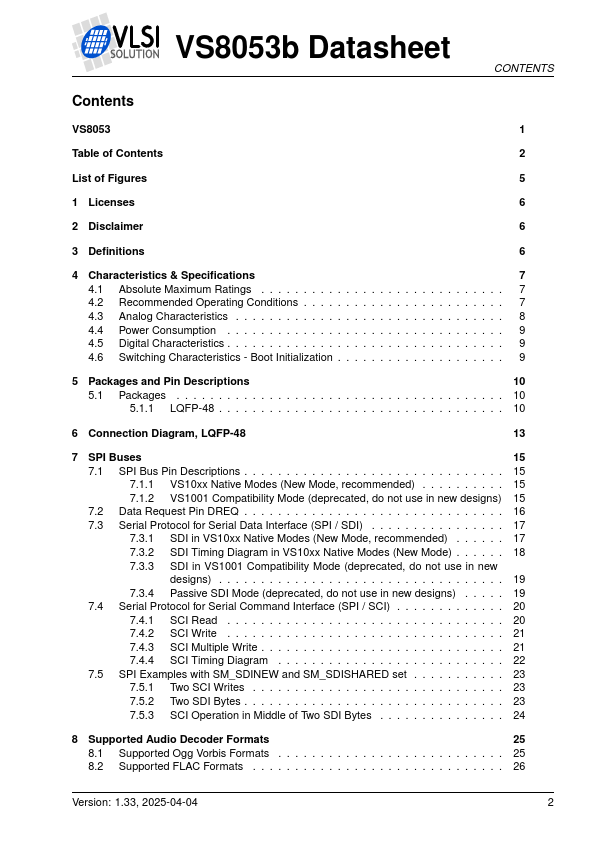

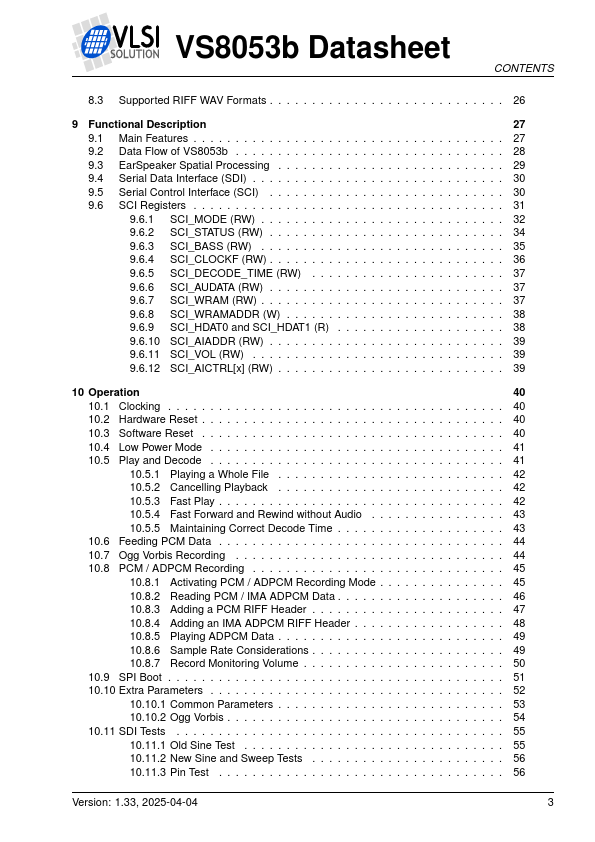

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VS8053b
Manufacturer
VLSI
File Size
742.01 KB
Datasheet
VS8053b-VLSI.pdf
Description
AUDIO PROCESSOR
