VS80N08AN N-Channel Advanced Power MOSFET

VS80N08AN Description

.

VS80N08AN Features

* N-Channel，10V Logic Level Control
* Enhancement mode
* Very low on-resistance RDS(on) @ VGS=10 V
* 100% Avalanche test
* Pb-free lead plating; RoHS compliant VS80N08AN 80V/105A N-Channel Advanced Power MOSFET V DS R @DS(on),TYP VGS=10 V ID 80 V 7.2 mΩ 105 A TO-262 Part ID

📥 Download Datasheet

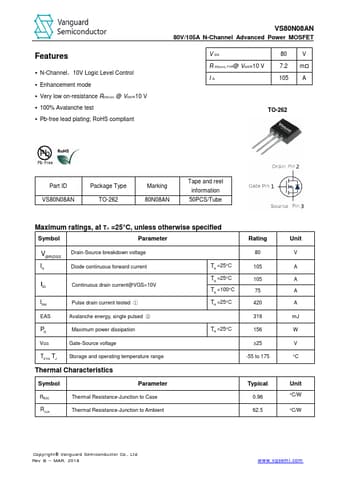

Preview of VS80N08AN PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VS80N08AN
Manufacturer
Vanguard Semiconductor
File Size
373.83 KB
Datasheet
VS80N08AN-VanguardSemiconductor.pdf
Description
N-Channel Advanced Power MOSFET
