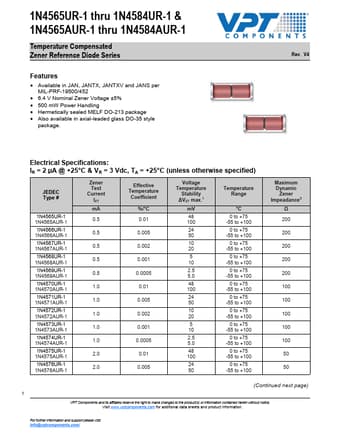

1N4565UR-1 thru 1N4584UR-1 & 1N4565AUR-1 thru 1N4584AUR-1
Temperature Compensated Zener Reference Diode Series
Features
• Available in JAN, JANTX, JANTXV and JANS per MIL-PRF-19500/452
• 6.4 V Nominal Zener Voltage ±5% • 500 mW Power Handling • Hermetically sealed MELF DO-213 package • Also available in axial-leaded glass DO-35 style
package.
Rev. V4
Electrical Specifications: IR = 2 µA @ +25°C & VR = 3 Vdc, TA = +25°C (unless otherwise specified)
JEDEC Type #
1N4565UR-1 1N4565AUR-1 1N4566UR-1 1N4566AUR-1 1N4567UR-1 1N4567AUR-1 1N4568UR-1 1N4568AUR-1
1N4569UR-1 1N4569AUR-1 1N4570UR-1 1N4570AUR-1 1N4571UR-1 1N4571AUR-1 1N4572UR-1 1N4572AUR-1
1N4573UR-1 1N4573AUR-1 1N4574UR-1 1N4574AUR-1 1N4575UR-1 1N4575AUR-1 1N4576UR-1 1N4576AUR-1
Zener Test Current
IZT mA 0.5
0.5
0.5
0.5
0.5
1.0
1.
