1N6639, 1N6638 Datasheet - VPT

1N6639 Switching Diodes

at any time, without notice. VPT Components makes no commitment to update the information and shall have no responsibility whatsoever for conflicts or incompatibilities arising from future changes to its specifications and product descriptions. No license, express or implied, by estoppels or otherw.

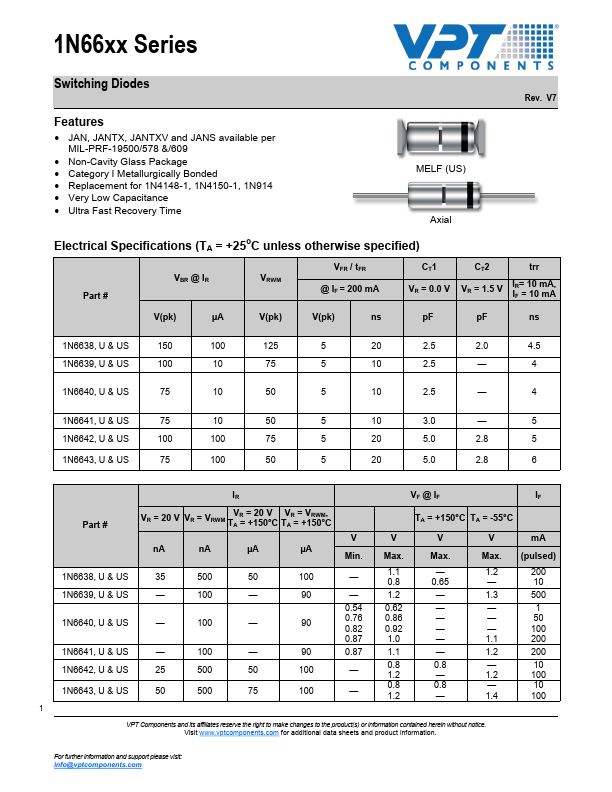

1N6639 Features

* JAN, JANTX, JANTXV and JANS available per MIL-PRF-19500/578 &/609

* Non-Cavity Glass Package

* Category I Metallurgically Bonded

* Replacement for 1N4148-1, 1N4150-1, 1N914

* Very Low Capacitance

* Ultra Fast Recovery Time MELF (US) Axial Electrica

1N6638-VPT.pdf

1N6639 Datasheet Preview — This datasheet PDF includes multiple part numbers: 1N6639, 1N6638. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

1N6639, 1N6638

Manufacturer:

VPT

File Size:

851.59 KB

Description:

Switching diodes.

Note:

This datasheet PDF includes multiple part numbers: 1N6639, 1N6638.
Please refer to the document for exact specifications by model.
