1N6641, 1N6638 - Switching Diodes

Name: 1N6641
SKU: 1N6641-1408800

VPT

The 1N6641 by VPT is a Switching Diodes. Below is the official datasheet preview.

Datasheet Details

Part number	1N6641, 1N6638
Manufacturer	VPT
File Size	851.59 KB
Description	Switching Diodes
Datasheet	1N6638-VPT.pdf
Note	This datasheet PDF includes multiple part numbers: 1N6641, 1N6638. Please refer to the document for exact specifications by model.

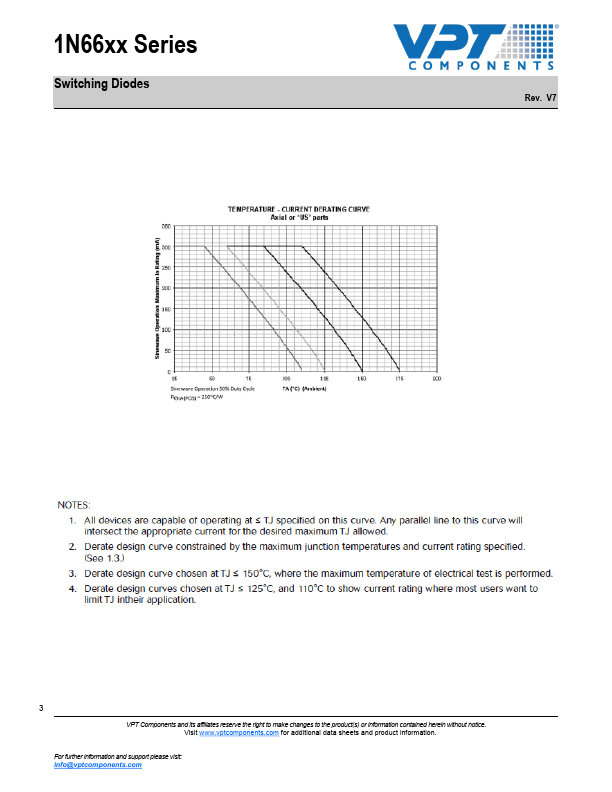

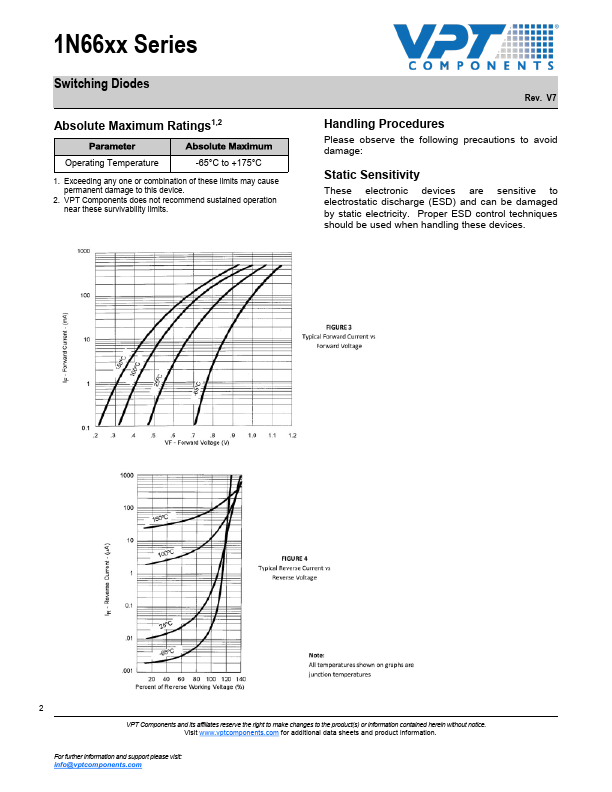

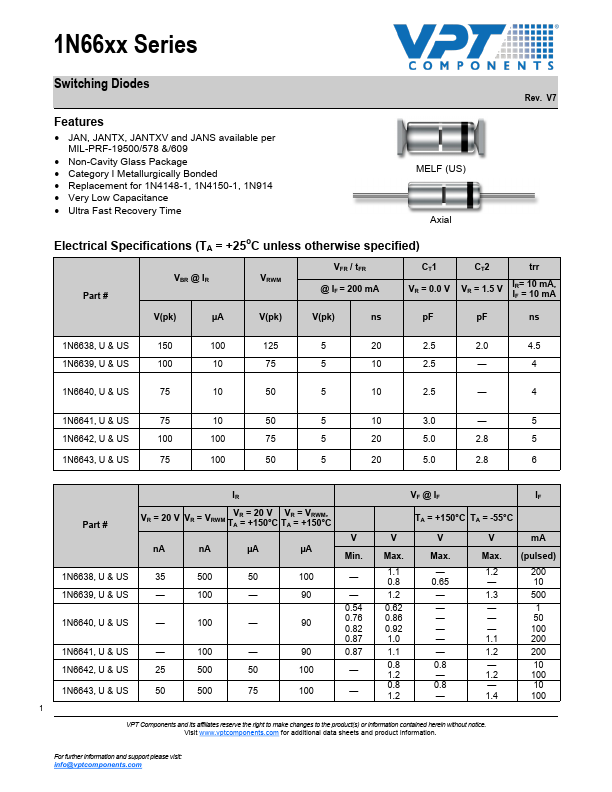

Additional preview pages of the 1N6641 datasheet.

at any time, without notice.

JAN, JANTX, JANTXV and JANS available per MIL-PRF-19500/578 &/609.
Non-Cavity Glass Package.
Category I Metallurgically Bonded.
Replacement for 1N4148-1, 1N4150-1, 1N914.
Very Low Capacitance.
Ultra Fast Recovery Time MELF (US) Axial Electrical Specifications (TA = +25oC unless otherwise specified) Part # VBR @ IR VRWM VFR / tFR @ IF = 200 mA CT1 VR = 0.0 V CT2 trr VR = 1.5 V IR= 10 mA, IF = 10 mA V(pk) µA V(pk) V(pk) ns pF.
