CD6313, CD6309, 0.5W Zener Diode

CD6309 - CD6349 0.5 W Zener Diode Chips .
This zener diode chip series is military qualified to MIL-PRF-19500/533 and is ideal for high reliability applications where a failure cannot be toler.

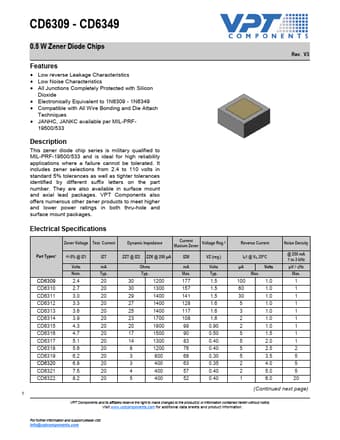

datasheet Preview Page 1 from Datasheet4u.com

CD6309-VPT.pdf

CD6313 Datasheet Preview — This datasheet PDF includes multiple part numbers: CD6313, CD6309. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

CD6313, CD6309

Manufacturer:

VPT

File Size:

466.27 KB

Description:

0.5W Zener Diode

Note:

This datasheet PDF includes multiple part numbers: CD6313, CD6309.
Please refer to the document for exact specifications by model.

Features

* Low reverse Leakage Characteristics
* Low Noise Characteristics
* All Junctions Completely Protected with Silicon Dioxide
* Electronically Equivalent to 1N6309 - 1N6349
* Compatible with All Wire Bonding and Die Attach Techniques
* JANHC, JANKC avail

Applications

* where a failure cannot be tolerated. It includes zener selections from 2.4 to 110 volts in standard 5% tolerances as well as tighter tolerances identified by different suffix letters on the part number. They are also available in surface mount and axial lead packages. VPT Components also offers nume
