SVRME28 SPACE QUALIFIED HYBRID EMI FILTERS

VPT

SVRME28 Description

SVRME28 Series SPACE QUALIFIED HYBRID EMI FILTERS SVRME Series EMI Filter 1.0 .
The SVRME is specifically designed for use with the SVR series DC-DC converters in the harsh radiation environment of space applications.

SVRME28 Features

* Up to 10 A maximum current
* High reliability
* Wide input voltage range: 0 to 37.5 V
* High input transient voltage: 50 V for 1 second
* 40 dB minimum attenuation at 500 kHz
* Continuous operation over full military temperature range of -55 °C to +1

SVRME28 Applications

* The SVRME design is fully passive, giving a strong resistance to radiation degradation. Performance is guaranteed through extensive circuit worst-case analysis and designed in accordance with Aerospace TOR requirements. The SVRME Series of EMI filters is suited for use in low Earth orbit (LEO), med

📥 Download Datasheet

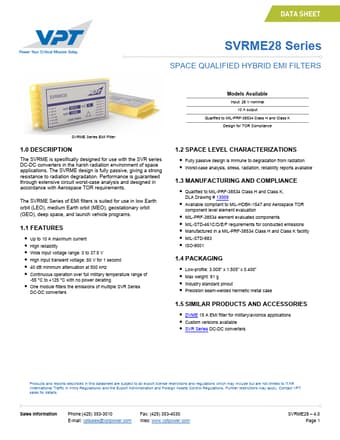

SVRME28 Datasheet Preview — Preview of SVRME28 PDF

Datasheet Details

Part number: SVRME28
Manufacturer: VPT
File Size: 1.42 MB
Datasheet: SVRME28-VPT.pdf
Description: SPACE QUALIFIED HYBRID EMI FILTERS
