VS40200ATD - N-Channel Advanced Power MOSFET

Datasheet Summary

Features

  • N-Channel，5V Logic Level Control.
  • Enhancement mode.
  • Very low on-resistance RDS(on) @ VGS=4.5V.
  • 100% Avalanche test.

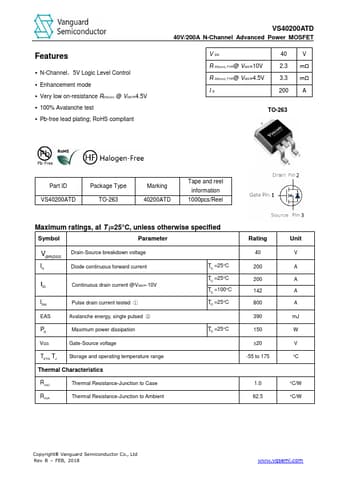

  • Pb-free lead plating; RoHS compliant VS40200ATD 40V/200A N-Channel Advanced Power MOSFET V DS R @DS(on),TYP VGS=10V R @DS(on),TYP VGS=4.5V ID 40 V 2.3 mΩ 3.3 mΩ 200 A TO-263 Part ID VS40200ATD Package Type TO-263 Marking 40200ATD Tape and reel information 1000pcs/Reel Maximum ratings, at T j=25°C, unless otherwise specified Symbol Parameter V(B.
