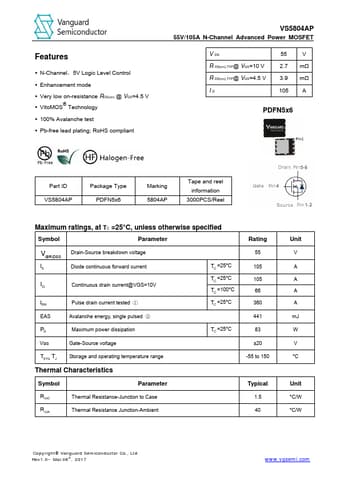

VS5804AP - N-Channel Advanced Power MOSFET

Vanguard Semiconductor

Datasheet Details

Part number	VS5804AP
Manufacturer	Vanguard Semiconductor
File Size	348.89 KB
Description	N-Channel Advanced Power MOSFET
Datasheet	VS5804AP-VanguardSemiconductor.pdf

N-Channel，5V Logic Level Control.
Enhancement mode.
Very low on-resistance RDS(on) @ VGS=4.5 V.
VitoMOS® Technology.
100% Avalanche test.
Pb-free lead plating; RoHS compliant VS5804AP 55V/105A N-Channel Advanced Power MOSFET V DS R @DS(on),TYP VGS=10 V R @DS(on),TYP VGS=4.5 V ID 55 V 2.7 mΩ 3.9 mΩ 105 A PDFN5x6 Part ID VS5804AP Package Type PDFN5x6 Marking 5804AP Tape and reel information 3000PCS/Reel Maximum ratings, at TC =25°C, unless otherwise specifie.
