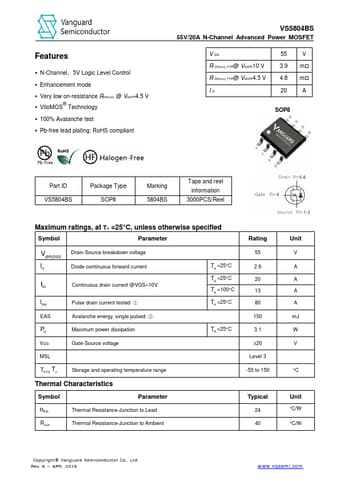

VS5804BS - N-Channel Advanced Power MOSFET

Vanguard Semiconductor

Datasheet Details

Part number	VS5804BS
Manufacturer	Vanguard Semiconductor
File Size	518.78 KB
Description	N-Channel Advanced Power MOSFET
Datasheet	VS5804BS-VanguardSemiconductor.pdf

N-Channel，5V Logic Level Control.
Enhancement mode.
Very low on-resistance RDS(on) @ VGS=4.5 V.
VitoMOS® Technology.
100% Avalanche test.
Pb-free lead plating; RoHS compliant VS5804BS 55V/20A N-Channel Advanced Power MOSFET V DS R @DS(on),TYP VGS=10 V R @DS(on),TYP VGS=4.5 V ID 55 V 3.9 mΩ 4.8 mΩ 20 A SOP8 Part ID VS5804BS Package Type SOP8 Marking 5804BS Tape and reel information 3000PCS/Reel Maximum ratings, at TA =25°C, unless otherwise specified Symbo.
