VSI090N10MS N-Channel Advanced Power MOSFET

VSI090N10MS Description

.

VSI090N10MS Features

* N-Channel，5V Logic Level Control
* Enhancement mode
* Very low on-resistance @ VGS=4.5 V
* Fast Switching
* 100% Avalanche test
* Pb-free lead plating; RoHS compliant VSI090N10MS 100V/15A N-Channel Advanced Power MOSFET V DS R DS(on),typ@VGS=10V R DS(on),typ@VGS=4.5V ID

📥 Download Datasheet

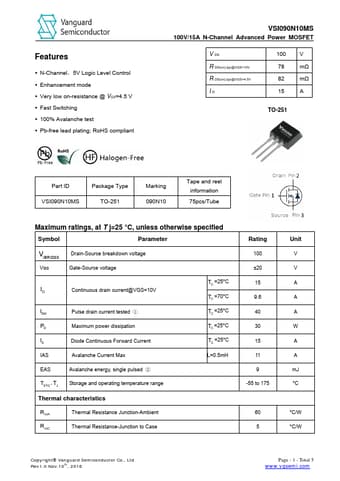

Preview of VSI090N10MS PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VSI090N10MS
Manufacturer
Vanguard Semiconductor
File Size
261.16 KB
Datasheet
VSI090N10MS-VanguardSemiconductor.pdf
Description
N-Channel Advanced Power MOSFET
