VST025N10MS - N-Channel Advanced Power MOSFET

Key Features

  • N-Channel，5V Logic Level Control.
  • Enhancement mode.
  • Low on-resistance RDS(on) @ VGS=4.5 V.
  • Fast Switching and High efficiency.
  • 100% Avalanche Tested.

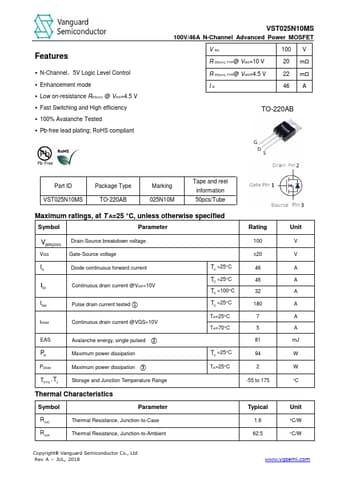

  • Pb-free lead plating; RoHS compliant VST025N10MS 100V/46A N-Channel Advanced Power MOSFET V DS 100 V R @DS(on),TYP VGS=10 V R @DS(on),TYP VGS=4.5 V 20 mΩ 22 mΩ I D 46 A TO-220AB Part ID VST025N10MS Package Type TO-220AB Marking 025N10M Tape and reel information 50pcs/Tube Maximum ratings, at T A=25 °C, unl.

📥 Download Datasheet

Datasheet Details

Part number VST025N10MS
Manufacturer Vanguard Semiconductor
File Size 705.55 KB
Description N-Channel Advanced Power MOSFET
Datasheet download datasheet VST025N10MS Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
VST007P06MS P-Channel 60V MOSFET VBsemi
VST12N100 MOSFET VSEEI
VST510xx (VST510xx - VST540xx) SURFACE MOUNT TRI-STATE VCXO Connor-Winfield Corporation
VST520xx (VST510xx - VST540xx) SURFACE MOUNT TRI-STATE VCXO Connor-Winfield Corporation
VST530xx (VST510xx - VST540xx) SURFACE MOUNT TRI-STATE VCXO Connor-Winfield Corporation

Other Datasheets by Vanguard Semiconductor

Part Number Description
VST003N06HS N-Channel Advanced Power MOSFET
VST003N06MS N-Channel Advanced Power MOSFET
VST004P03MS P-Channel Advanced Power MOSFET
VST006N04MS N-Channel Advanced Power MOSFET
VST007N06HS N-Channel Advanced Power MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
Features  N-Channel，5V Logic Level Control  Enhancement mode  Low on-resistance RDS(on) @ VGS=4.5 V  Fast Switching and High efficiency  100% Avalanche Tested  Pb-free lead plating; RoHS compliant VST025N10MS 100V/46A N-Channel Advanced Power MOSFET V DS 100 V R @DS(on),TYP VGS=10 V R @DS(on),TYP VGS=4.
