ZTT ZTT Series MHz-Band Ceramic Resonator

Ceramic Resonator ZTT Series MHz-Band Ceramic Resonator ZTT series MHz-Band ceramic resonators are widely used in telecommunication, cable, radar, TV set, tape recorder, video camera and other electronic products due to its lower price and stable performances. ZTT High stability of resonant frequency Comprises fixed, tuned, solid-state devices Miniature and light weight, simple construction Excellent shock resistance performance Non-adjustment .

ZTT Features

* 100VDC 500MΩ min at 10VDC 2.00MHz ~ 13.00MHz 12.10MHz ~ 19.99MHz 20.00MHz ~ 25.99MHz 26.00MHz ~ 50.00MHz P/N ZTT_MG ZTT_MG ZTT_MT ZTT_MX ZTT Series Standard Frequency(MHz) 2.00 ~ 3.00 3.01 ~ 6.50 6.00 ~ 13.00 12.10 ~ 50.00 W 12.0 10.0 8.0 9.0 H 8.0 7.0 8.0 8.0 T 4.0 4.0 4.0 4.0 TEST CIRCUIT

ZTT Datasheet (55.17 KB)

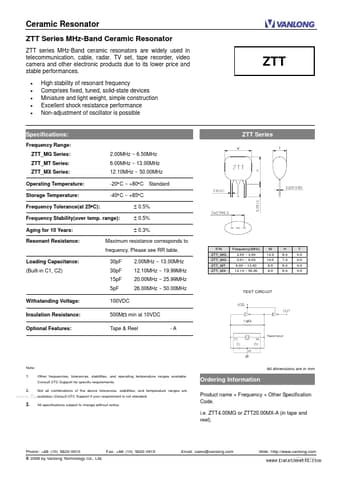

Preview of ZTT PDF

Datasheet Details

Part number:

ZTT

Manufacturer:

Vanlong Technology

File Size:

55.17 KB

Description:

Ztt series mhz-band ceramic resonator.
