ZTT16.00MX Through Hole Ceramic Resonators

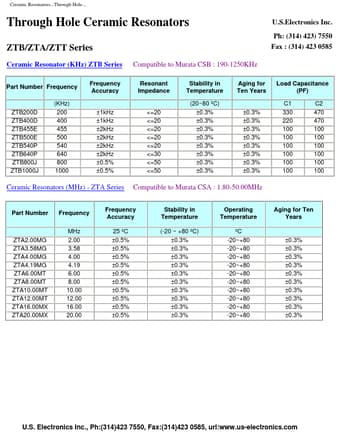

Ceramic ResonatorsThrough Hole Through Hole Ceramic Resonators ZTB/ZTA/ZTT Series Ceramic Resonator (KHz) ZTB Series Compatible to Murata CSB : 190-1250KHz U.S.Electronics Inc. Ph: (314) 423) 7550 Fax : (314) 423 0585 Part Number Frequency ZTB200D ZTB400D ZTB455E ZTB500E ZTB540P ZTB640P ZTB800J ZTB1000J (KHz) 200 400 455 500 540 640 800 1000 Frequency Accuracy ±1kHz ±1kHz ±2kHz ±2kHz ±2kHz ±2kHz ±0.5% ±0.5% Resonant Impedance <=20 <=20 <=20 <=20 <=20 <=30 <=50 <=50 Stability in Temperatur.

ZTT2.00MG-USElectronics.pdf

This datasheet PDF includes multiple part numbers: ZTT16.00MX, ZTT2.00MG. Please refer to the document for exact specifications by model.
ZTT16.00MX Datasheet Preview Page 2 ZTT16.00MX Datasheet Preview Page 3

Datasheet Details

Part number:

ZTT16.00MX, ZTT2.00MG

Manufacturer:

US Electronics

File Size:

86.01 KB

Description:

Through hole ceramic resonators.

Note:

This datasheet PDF includes multiple part numbers: ZTT16.00MX, ZTT2.00MG.
Please refer to the document for exact specifications by model.
