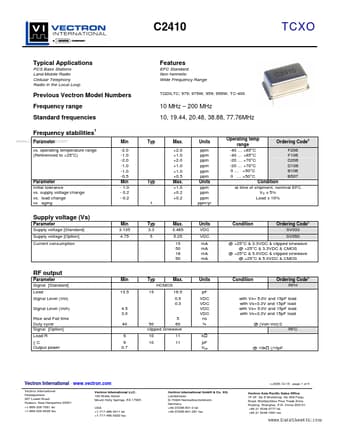

C2410
Typical Applications
PCS Base Stations Land Mobile Radio Cellular Telephony Radio in the Local Loop
TCXO
Features
EFC Standard Non hermetic Wide Frequency Range TQDILTC; 979; 979W, 959; 959W, TC-400
Previous Vectron Model Numbers Frequency range Standard frequencies Frequency stabilities1
www.DataSheet4U.com Parameter
10 MHz – 200 MHz 10, 19.44, 20.48, 38.88, 77.76MHz
Min -2.0 -1.0 -2.0 -1.0 -1.0 -0.5 Min - 1.0 - 0.2 - 0.2
Typ
Max. +2.0 +1.0 +2.0 +1.0 +1.0 +0.5 Max. +1.0 +0.2 +0.2
Units ppm ppm ppm ppm ppm ppm Units ppm ppm ppm ppm/yr
vs. operating temperature range (Referenced to +25°C)
Parameter Initial tolerance vs. supply voltage change vs.
