VS4620DS-G - 40V/11A Dual N-Channel Advanced Power MOSFET

The VS4620DS-G by Vergiga is a 40V/11A Dual N-Channel Advanced Power MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	VS4620DS-G
Manufacturer	Vergiga
File Size	949.41 KB
Description	40V/11A Dual N-Channel Advanced Power MOSFET
Datasheet	VS4620DS-G-Vergiga.pdf

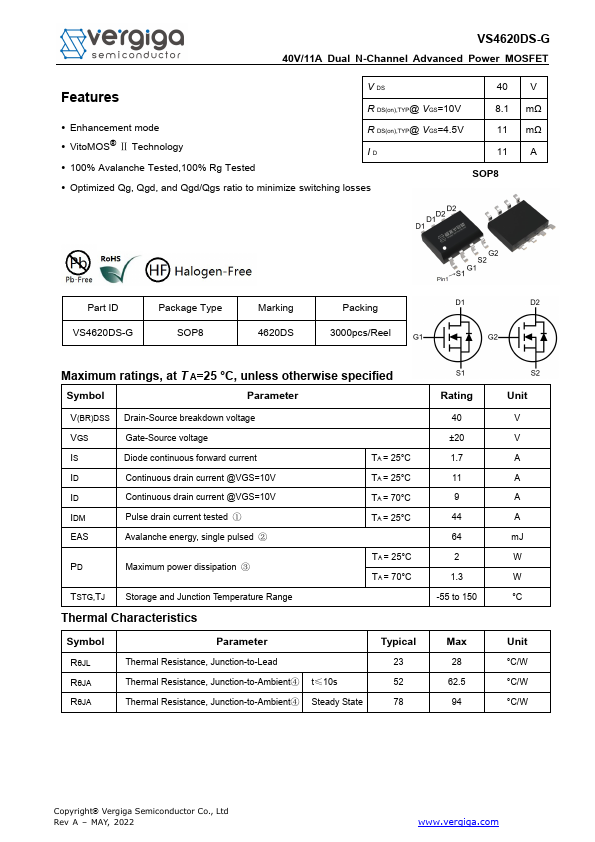

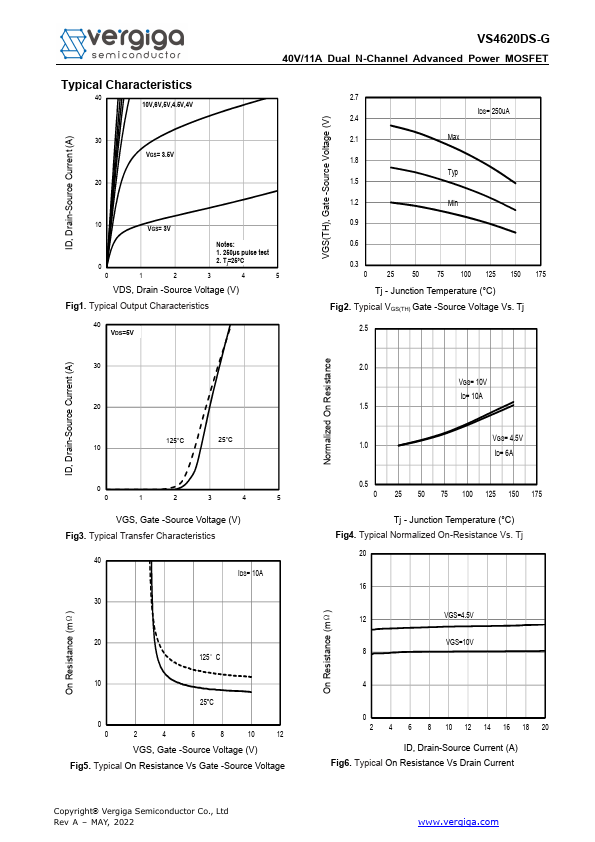

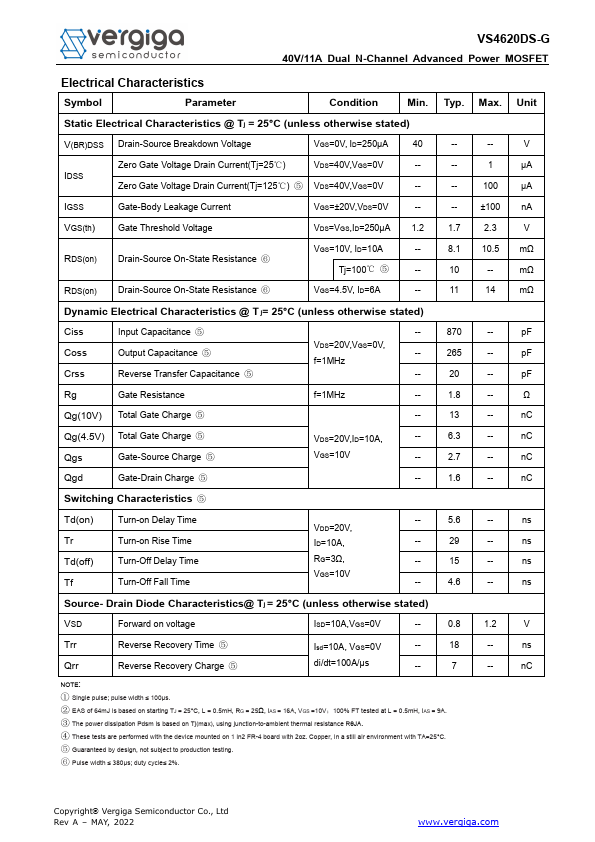

Additional preview pages of the VS4620DS-G datasheet.

V DS R @ DS(on),TYP VGS=10V 40 V 8.1 mΩ.
Enhancement mode.
VitoMOS® Ⅱ Technology R @ DS(on),TYP VGS=4.5V ID 11 mΩ 11 A.
100% Avalanche Tested,100% Rg Tested SOP8.
Optimized Qg, Qgd, and Qgd/Qgs ratio to minimize switching losses Part ID VS4620DS-G Package Type SOP8 Marking 4620DS Packing 3000pcs/Reel Maximum ratings, at T A=25 °C, unless otherwise specified Symbol Parameter V(BR)DSS Drain-Source breakdown voltage VGS Gate-Source voltage IS Diode continuous.
