V048K015T090, V048A015T090 Datasheet - Vicor Corporation

V048K015T090 - (V048x015T090) Voltage Transformation Module

Absolute Maximum Ratings Parameter +In to -In +In to -In PC to -In TM to -In VC to -In +Out to -Out Isolation voltage The V048K015T090 V *I Chip Voltage Transformation Module (VTM) breaks records for speed, density and efficiency to meet the demands of advanced DSP, FPGA, ASIC, processor co

www.DataSheet4U.com VTM V I Chip VTM Voltage Transformation Module TM V048K015T090 K indicates BGA configuration.

For other mounting options see Part Numbering below.

48 V to 1.5 V V I Chip Converter 90 A (135 A for 1 ms) High density 360 A/in 3 125°C operation 1 µs transient response >3.5 million hours MTBF Typical efficiency 93% at 1.5 V/50 A No output filtering required

V048K015T090 Features

* A, B & C as defined 20g peak, 20-2,000 Hz, test in X, Y & Z directions 1,500g peak 0.5 ms pulse duration, 5 pulses in 6 directions Meets or exceeds 2,000 Volts Meets or exc

V048A015T090_VicorCorporation.pdf

This datasheet PDF includes multiple part numbers: V048K015T090, V048A015T090. Please refer to the document for exact specifications by model.

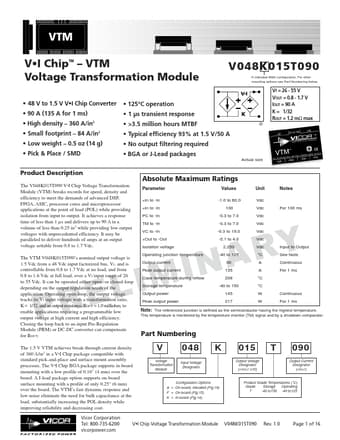

V048K015T090 Datasheet Preview Page 2 V048K015T090 Datasheet Preview Page 3

Datasheet Details

Part number:

V048K015T090, V048A015T090

Manufacturer:

Vicor Corporation

File Size:

519.99 KB

Description:

(v048x015t090) voltage transformation module.

Note:

This datasheet PDF includes multiple part numbers: V048K015T090, V048A015T090.
Please refer to the document for exact specifications by model.
