V048K030T070 (V048x030T070) Voltage Transformation Module

The V048K030T070 V *I Chip Voltage Transformation Module (VTM) breaks records for speed, density and efficiency to meet the demands of advanced DSP, FPGA, and ASIC at the point of load (POL) while providing isolation from input to output. It achieves a response time of less than 1 µs and deli.

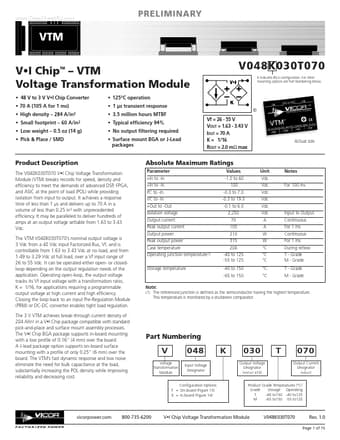

www.DataSheet4U.com PRELIMINARY VTM V I Chip VTM Voltage Transformation Module TM V048K030T070 K indicates BGA configuration. For other mounting options see Part Numbering below. 48 V to 3 V V I Chip Converter 70 A (105 A for 1 ms) High density 284 A/in3 Small footprint 60 A/in2 Low weight 0.5 oz (14 g) Pick & Place / SMD 125°C operation 1 µs transient resp.

V048K030T070 Features

* ed, destruct margin determined Constant line, 0-100% load, -20°C to 125°C V

* I Chip Ball Grid Array Interconnect Qualification Test BGA solder fatigue evaluation Solder ball sh
