DCM2322

DC-DC Converter

DCM2322 Features

* & Benefits

* Isolated, regulated DC-DC converter

* Up to 120 W, 5.00 A continuous

* 90.6% peak efficiency

* 532 W/in3 Power density

* Wide input range 43

* 154 Vdc

* Safety Extra Low Voltage (SELV) 24.0 V Nominal Output

* 3000 Vdc isolat

DCM2322 General Description

The DCM2322 is a lower power, isolated and regulated DC-DC converter that operates from an unregulated, wide-range input to generate an isolated 24.0 Vdc output. With its high-frequency zero-voltage switching (ZVS) topology, the DCM2322 converter consistently delivers high efficiency across the input .

DCM2322 Datasheet (4.69 MB)

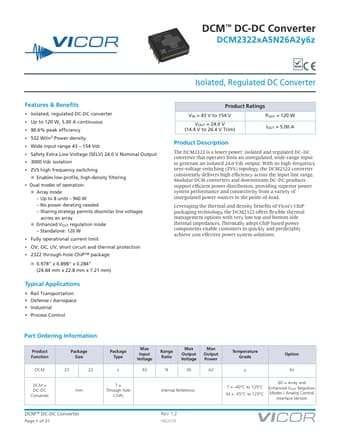

Preview of DCM2322 PDF

Datasheet Details

Part number:

DCM2322

Manufacturer:

Vicor

File Size:

4.69 MB

Description:

Dc-dc converter.
