DCM3623x36G53C2yzz - DC-DC Converter

Product Overview

VICOR

📥 Download Datasheet

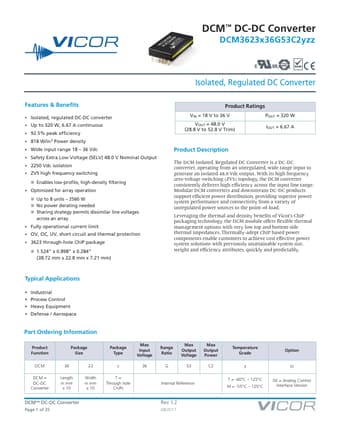

DCM3623x36G53C2yzz DC-DC Converter by VICOR - Datasheet Preview — Datasheet preview – DCM3623x36G53C2yzz

Datasheet Details

Part number	DCM3623x36G53C2yzz
Manufacturer	VICOR
File Size	3.71 MB
Description	DC-DC Converter
Datasheet	DCM3623x36G53C2yzz Datasheet
Additional preview pages of the DCM3623x36G53C2yzz datasheet.

Product details

Description

The DCM Isolated, Regulated DC Converter is a DC-DC converter, operating from an unregulate

Features

& Beneﬁts.
Isolated, regulated DC-DC converter.
Up to 320 W, 6.67 A continuous.
92.5% peak efficiency.
818 W/in3 Power density.
Wide input range 18.
36 Vdc.
Safety Extra Low Voltage (SELV) 48.0 V Nominal Output.
2250 Vdc isolation.
ZVS high frequency switching n Enables low-profile, high-density filtering.
Optimized for array operation n Up to 8 units.
2560 W n No power derating needed n Sharing st.
