DCM3623T50M04A2T00, DCM3623x50M04A2yzz, DC-DC Converter

DCM™ DC-DC Converter DCM3623x50M04A2yzz S ® C US C NRTL US Isolated, Regulated DC Converter .
The DCM Isolated, Regulated DC Converter is a DC-DC converter, operating from an unregulated, wide range input to generate an isolated 3.

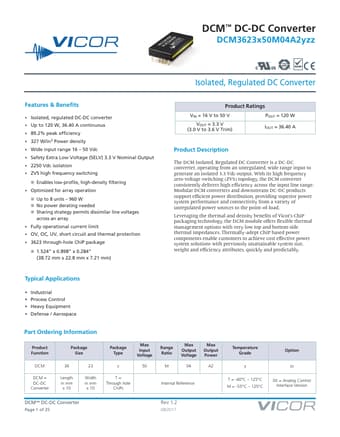

datasheet Preview Page 1 from Datasheet4u.com

DCM3623x50M04A2yzz-VICOR.pdf

DCM3623T50M04A2T00 Datasheet Preview — This datasheet PDF includes multiple part numbers: DCM3623T50M04A2T00, DCM3623x50M04A2yzz. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DCM3623T50M04A2T00, DCM3623x50M04A2yzz

Manufacturer:

Vicor

File Size:

3.40 MB

Description:

DC-DC Converter

Note:

This datasheet PDF includes multiple part numbers: DCM3623T50M04A2T00, DCM3623x50M04A2yzz.
Please refer to the document for exact specifications by model.

Features

* & Beneﬁts
* Isolated, regulated DC-DC converter
* Up to 120 W, 36.40 A continuous
* 89.2% peak efficiency
* 327 W/in3 Power density
* Wide input range 16
* 50 Vdc
* Safety Extra Low Voltage (SELV) 3.3 V Nominal Output
* 2250 Vdc isolati

Applications

* Industrial
* Process Control
* Heavy Equipment
* Defense / Aerospace Part Ordering Information Product Function DCM DCM = DC-DC Converter Package Size 36 Length in mm x 10 23 Width in mm x 10 Package Type x Max Input Voltage Range Ratio Max Output Voltage
