DCM3623T75H53C2M00

DC-DC Converter

DCM3623T75H53C2M00 Features

* & Benefits

* Isolated, regulated DC-DC converter

* Up to 320 W, 6.67 A continuous

* 92.5% peak efficiency

* 818 W/in3 Power density

* Wide input range 36

* 75 Vdc

* Safety Extra Low Voltage (SELV) 48.0 V Nominal Output

* 2250 Vdc isolati

DCM3623T75H53C2M00 General Description

The DCM Isolated, Regulated DC Converter is a DC-DC converter, operating from an unregulated, wide range input to generate an isolated 48.0 Vdc output. With its high frequency zero voltage switching (ZVS) topology, the DCM converter consistently delivers high efficiency across the input line range. Mo.

DCM3623T75H53C2M00 Datasheet (3.49 MB)

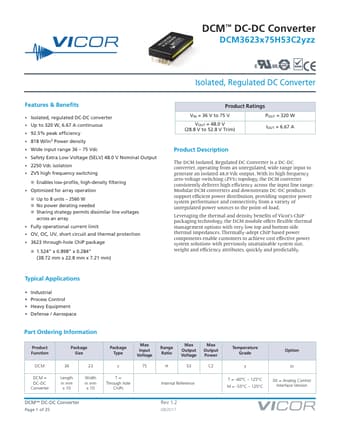

Preview of DCM3623T75H53C2M00 PDF

Datasheet Details

Part number:

DCM3623T75H53C2M00

Manufacturer:

Vicor

File Size:

3.49 MB

Description:

Dc-dc converter.
