DCM3623T50T53A6M00 DC-DC Converter

The DCM Isolated, Regulated DC Converter is a DC-DC converter, operating from an unregulated, wide range input to generate an isolated 48.0 Vdc output. With its high frequency zero voltage switching (ZVS) topology, the DCM converter consistently delivers high eﬃciency across the input line range. Mo.

DCM3623T50T53A6M00 Features

* & Beneﬁts

* Isolated, regulated DC-DC converter

* Up to 160 W, 3.40 A continuous

* 90.5% peak efficiency

* 436 W/in3 Power density

* Wide input range 9

* 50 Vdc

* Safety Extra Low Voltage (SELV) 48.0 V Nominal Output

* 2250 Vdc isolatio

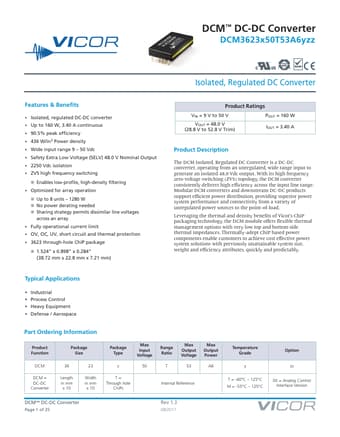

DCM3623x50T53A6yzz-VICOR.pdf

DCM3623T50T53A6M00 Datasheet Preview — This datasheet PDF includes multiple part numbers: DCM3623T50T53A6M00, DCM3623x50T53A6yzz. Please refer to the document for exact specifications by model.

DCM3623T50T53A6M00 Datasheet Preview Page 2

DCM3623T50T53A6M00 Datasheet Preview Page 3

Datasheet Details

Part number:

DCM3623T50T53A6M00, DCM3623x50T53A6yzz

Manufacturer:

Vicor

File Size:

3.71 MB

Description:

Dc-dc converter.

Note:

This datasheet PDF includes multiple part numbers: DCM3623T50T53A6M00, DCM3623x50T53A6yzz.
Please refer to the document for exact specifications by model.
