DCM3623T50T53A6T00

DC-DC Converter

DCM3623T50T53A6T00 Features

* & Benefits

* Isolated, regulated DC-DC converter

* Up to 160 W, 3.40 A continuous

* 90.5% peak efficiency

* 436 W/in3 Power density

* Wide input range 9

* 50 Vdc

* Safety Extra Low Voltage (SELV) 48.0 V Nominal Output

* 2250 Vdc isolatio

DCM3623T50T53A6T00 General Description

The DCM Isolated, Regulated DC Converter is a DC-DC converter, operating from an unregulated, wide range input to generate an isolated 48.0 Vdc output. With its high frequency zero voltage switching (ZVS) topology, the DCM converter consistently delivers high efficiency across the input line range. Mo.

DCM3623T50T53A6T00 Datasheet (3.71 MB)

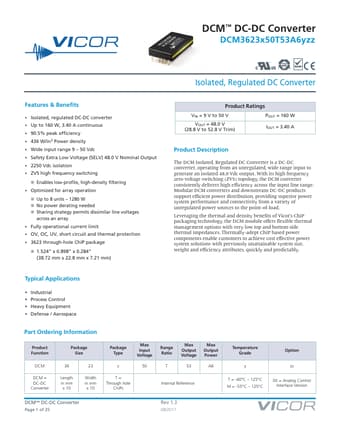

Preview of DCM3623T50T53A6T00 PDF

Datasheet Details

Part number:

DCM3623T50T53A6T00

Manufacturer:

Vicor

File Size:

3.71 MB

Description:

Dc-dc converter.
