DCM3623T50M04A2M00 DC-DC Converter

The DCM Isolated, Regulated DC Converter is a DC-DC converter, operating from an unregulated, wide range input to generate an isolated 3.3 Vdc output. With its high frequency zero voltage switching (ZVS) topology, the DCM converter consistently delivers high efficiency across the input line range. Mod.

DCM3623T50M04A2M00 Features

* & Benefits

* Isolated, regulated DC-DC converter

* Up to 120 W, 36.40 A continuous

* 89.2% peak efficiency

* 327 W/in3 Power density

* Wide input range 16

* 50 Vdc

* Safety Extra Low Voltage (SELV) 3.3 V Nominal Output

* 2250 Vdc isolati

DCM3623x50M04A2yzz-VICOR.pdf

This datasheet PDF includes multiple part numbers: DCM3623T50M04A2M00, DCM3623x50M04A2yzz. Please refer to the document for exact specifications by model.

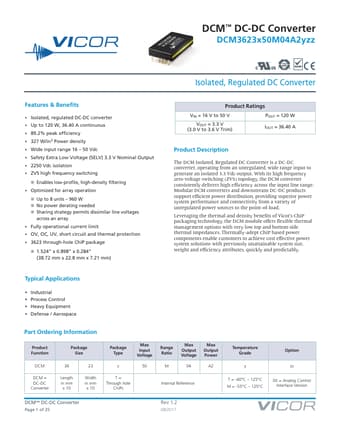

DCM3623T50M04A2M00 Datasheet Preview Page 2 DCM3623T50M04A2M00 Datasheet Preview Page 3

Datasheet Details

Part number:

DCM3623T50M04A2M00, DCM3623x50M04A2yzz

Manufacturer:

Vicor

File Size:

3.40 MB

Description:

Dc-dc converter.

Note:

This datasheet PDF includes multiple part numbers: DCM3623T50M04A2M00, DCM3623x50M04A2yzz.
Please refer to the document for exact specifications by model.
