VKS232 Datasheet - VinKa

LCD Driver

VKS232 Features

* Operating voltage:2.4-5.2V

* Built-in 256kHz RC oscillator（default）

* mode select by DS pin: mode0:Drive display point 116×2,dynamic,1/2bias 50%duty （DS=0） mode1:Drive display points116×1，static,no bias 100%duty（DS=1）

* Built-in 58×4 bit display RAM,Two ram mapping

VKS232 General Description

9.6232 116×1/116×2 LCD STATIC DRIVER VKS232 is a RAM Mapping dual-mode LCD Driver,Select the display mode through the DS pin，It can support static LCD screens with a maximum of 116 pattern(116SEGx1COM), or dynamic LCD screens with a maximum of 232 pattern(116SEGx2COM), only 3 or 4 lines are requir.

VKS232 Datasheet (4.18 MB)

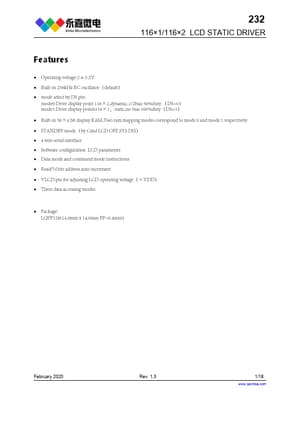

VKS232 Datasheet Preview — Preview of VKS232 PDF

Datasheet Details

Part number:

VKS232

Manufacturer:

VinKa

File Size:

4.18 MB

Description:

Lcd driver.
