V23990-P589-*4*-PM
flow PIM 1
Features
● 3~rectifier, optional BRC, Inverter, NTC ● Very compact housing, easy to route ● IGBT4 / EmCon4 technology for low saturation losses
and improved EMC behaviour
Target Applications
● Industrial drives ● Embedded Drives
Types
● V23990-P589-A41-PM ● V23990-P589-A41Y-PM ● V23990-P589-A418-PM ● V23990-P589-C41-PM
1200V/25A
flow 1 housing
12mm housing Solder pins
17mm housing Solder pins
Schematic
17mm housing Pressfit pins
Tj=25°C, unless otherwise specified
Parameter
Input Rectifier Diode
Repetitive peak reverse voltage DC forward current Surge forward current I2t-value Power dissipation per Diode Maximum Junction Temperature
Inverter Transistor
Collector-emitter break down voltage DC collector current Pulsed collector current Turn off safe operat

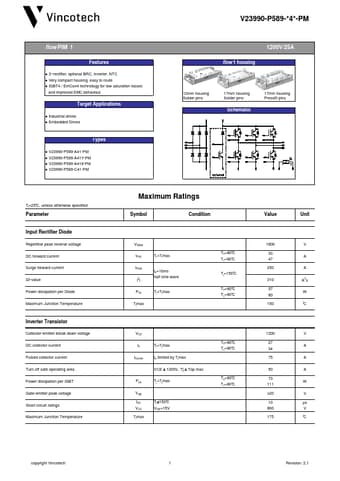

V23990-P589-A418-PM Datasheet
