85HFL20S10 Features
* Short reverse recovery time
* Low stored charge
* Wide current range
* Excellent surge capabilities
* Stud cathode and stud anode versions
* Types up to 100 VRRM DO-203AB (DO-5)
* Compliant to RoHS directive 2002/95/EC TYPICAL APPLICATIONS
Datasheet Details
85HFL20S10, 85HFL
Vishay ↗ Siliconix
1.92 MB

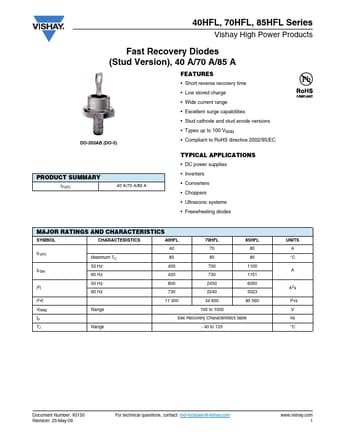

(85hfl series) fast recovery diodes.
This datasheet PDF includes multiple part numbers: 85HFL20S10, 85HFL.
Please refer to the document for exact specifications by model.
