AGP15 - Miniature Glass Passivated Junction

Features

Reverse Voltage 400 to 800V Forward Current 1.5A.
d e t n e t Pa Dimensions in inches and (millimeters) 0.300 (7.6) 0.230 (5.8).
Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
High temp. metallurgically bonded constructed rectifiers.
Controlled Avalanche characteristic combined with the ability to dissipate reverse power.
Glass passivated cavity-free junction in DO-15 package.
1.5 Ampere operation at TA=55°C wi.

Vishay Siliconix

Datasheet Details

Part number	AGP15
Manufacturer	Vishay Siliconix
File Size	86.73 KB
Description	Miniature Glass Passivated Junction
Datasheet	AGP15 Datasheet
Additional preview pages of the AGP15 datasheet.

📁 Similar Datasheet

AGP2010 - (AGP201x) DSP Relay (Matsushita)
AGP2011 - (AGP201x) DSP Relay (Matsushita)
AGP2012 - (AGP201x) DSP Relay (Matsushita)
AGP2013 - (AGP201x) DSP Relay (Matsushita)
AGP2014 - (AGP201x) DSP Relay (Matsushita)
AGP2015 - (AGP201x) DSP Relay (Matsushita)
AGP2017 - (AGP201x) DSP Relay (Matsushita)
AGP2019 - (AGP201x) DSP Relay (Matsushita)
AGP2923 - Power Inductors (Coilcraft)
AGP4233 - Power Inductors (Coilcraft)

Other Datasheets by Vishay Siliconix

Full PDF Text Transcription

Click to expand full text

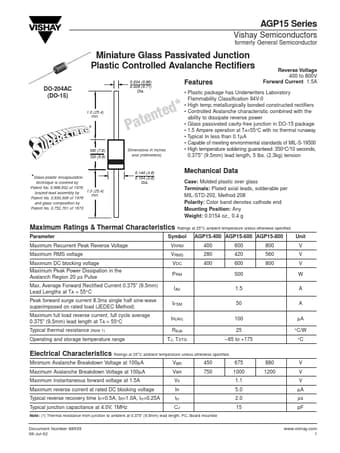

www.DataSheet.co.kr AGP15 Series Vishay Semiconductors formerly General Semiconductor Miniature Glass Passivated Junction Plastic Controlled Avalanche Rectifiers DO-204AC (DO-15) 1.0 (25.4) min. ® 0.034 (0.86) 0.028 (0.71) Dia. Features Reverse Voltage 400 to 800V Forward Current 1.5A * d e t n e t Pa Dimensions in inches and (millimeters) 0.300 (7.6) 0.230 (5.8) • Plastic package has Underwriters Laboratory Flammability Classification 94V-0 • High temp. metallurgically bonded constructed rectifiers • Controlled Avalanche characteristic combined with the ability to dissipate reverse power • Glass passivated cavity-free junction in DO-15 package • 1.5 Ampere operation at TA=55°C with no thermal runaway • Typical IR less than 0.
