AS3BJ Avalanche Surface Mount Rectifiers

AS3BJ Description

www.DataSheet.co.kr AS3BJ Vishay General Semiconductor Avalanche Surface Mount Rectifiers .

AS3BJ Features

* Low profile package
* Ideal for automated placement
* Glass passivated chip junction
* Controlled avalanche characteristics
* Low leakage current
* High forward surge capability
* AEC-Q101 qualified
* Meets MSL level 1, per J-STD-020,

AS3BJ Applications

* For use in general purpose rectification of power supplies, inverters, converters, and freewheeling diodes for consumer, automotive, and telecommunication. MAXIMUM RATINGS (TA = 25 °C unless otherwise noted) PARAMETER Device marking code Maximum repetitive peak reverse voltage Maximum DC forward cu

📥 Download Datasheet

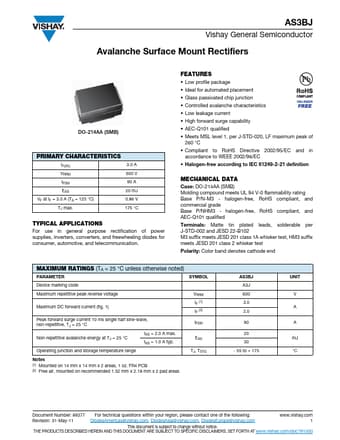

Preview of AS3BJ PDF
datasheet Preview Page 2 datasheet Preview Page 3
