AS3BD Standard Avalanche Surface-Mount Rectifier

AS3BD Description

www.vishay.com AS3BD, AS3BG, AS3BJ Vishay General Semiconductor Standard Avalanche Surface-Mount Rectifiers SMB (DO-214AA) Cathode Anode ADDITIO.

AS3BD Features

* Low profile package Available
* Ideal for automated placement
* Glass passivated chip junction
* Controlled avalanche characteristics
* Low leakage current
* High forward surge capability
* AEC-Q101 qualified available - Automotive or

AS3BD Applications

* For use in general purpose rectification of power supplies, inverters, converters, and freewheeling diodes for consumer, automotive, and telecommunication. MECHANICAL DATA Case: SMB (DO-214AA) Molding compound meets UL 94 V-0 flammability rating Base P/N-M3 - halogen-free, RoHS compliant, and comme

📥 Download Datasheet

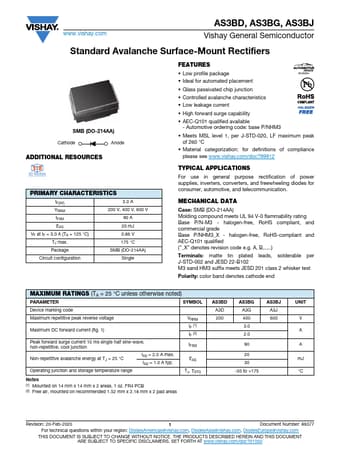

Preview of AS3BD PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AS3BD
Manufacturer
Vishay ↗
File Size
93.93 KB
Datasheet
AS3BD-Vishay.pdf
Description
Standard Avalanche Surface-Mount Rectifier
