BA158GP

Fast Switching Plastic Rectifier

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part Micro Commercial Components BA158GP-TP DIODE STANDARD 600V 1A DO41 DigiKey 0 250000 units
$0.03

BA158GP Datasheet (68.29 KB)

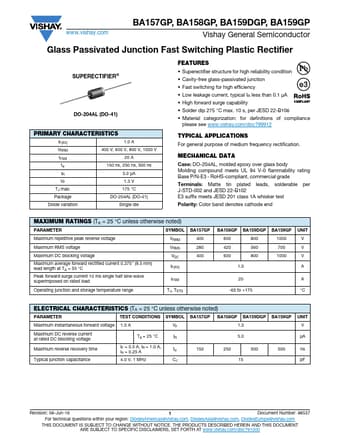

Preview of BA158GP PDF Datasheet

Datasheet Details

Part number:

BA158GP

Manufacturer:

Vishay ↗ Siliconix

File Size:

68.29 KB

Description:

Fast switching plastic rectifier

BA158GP Features

* Superectifier structure for high reliability condition

* Cavity-free glass-passivated junction

* Fast switching for high efficiency

* Low leakage current, typical IR less than 0.1 μA

* High forward surge capability

* Solder dip 275 °C max. 10 s, per
