BA159GP, BA158GP Fast Switching Plastic Rectifier

BA159GP Description

www.vishay.com BA157GP, BA158GP, BA159DGP, BA159GP Vishay General Semiconductor Glass Passivated Junction Fast Switching Plastic Rectifier SUPERECT.

BA159GP Features

* Superectifier structure for high reliability condition
* Cavity-free glass-passivated junction
* Fast switching for high efficiency
* Low leakage current, typical IR less than 0.1 μA
* High forward surge capability
* Solder dip 275 °C max. 10 s, per

BA159GP Applications

* For general purpose of medium frequency rectification. MECHANICAL DATA Case: DO-204AL, molded epoxy over glass body Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-compliant, commercial grade Terminals: Matte tin plated leads, solderable per J-STD-002 and JESD 22-B102 E3 su

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BA159GP, BA158GP. Please refer to the document for exact specifications by model.

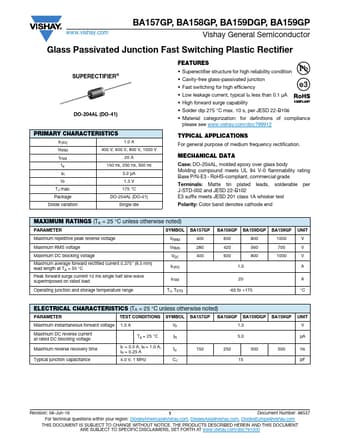

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BA159GP, BA158GP
Manufacturer
Vishay ↗ Siliconix
File Size
68.29 KB
Datasheet
BA158GP_VishaySiliconix.pdf
Description
Fast Switching Plastic Rectifier
Note
This datasheet PDF includes multiple part numbers: BA159GP, BA158GP.
Please refer to the document for exact specifications by model.
