BY253P - General Purpose Plastic Rectifier

Product Overview

Vishay Siliconix

📥 Download Datasheet

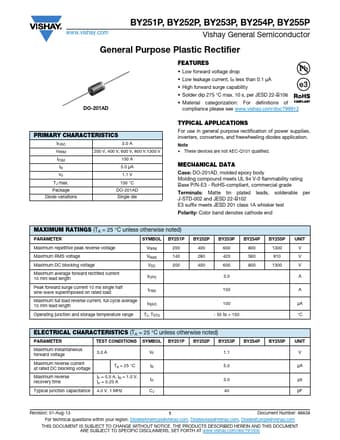

BY253P General Purpose Plastic Rectifier by Vishay Siliconix - Datasheet Preview — Datasheet preview – BY253P

Datasheet Details

Part number	BY253P
Manufacturer	Vishay Siliconix
File Size	71.83 KB
Description	General Purpose Plastic Rectifier
Datasheet	BY253P Datasheet
Note	This datasheet PDF includes multiple part numbers: BY253P, BY251P. Please refer to the document for exact specifications by model.
Additional preview pages of the BY253P datasheet.

Product details

Features

Low forward voltage drop.
Low leakage current, IR less than 0.1 μA.
High forward surge capability.
Solder dip 275 °C max. 10 s, per JESD 22-B106.
Compliant to RoHS directive 2002/95/EC and in accordance to WEEE 2002/96/EC DO-201AD.
