DF1502S, DF15005S (DF15005S - DF1510S) Miniature Glass Passivated Single-Phase Surface Mount Bridge Rectifiers

DF1502S Description

DF15005S, DF1501S, DF1502S, DF1504S, DF1506S, DF1508S, DF1510S www.vishay.com Vishay General Semiconductor Miniature Glass Passivated Single-Phase .

DF1502S Features

* UL recognition, file number E54214
* Ideal for automated placement
* High surge current capability
* Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
* Material categorization: For definitions of compliance please see www. vishay. com/doc?99912 TYPI

DF1502S Applications

* General purpose use in AC/DC bridge full wave rectification for SMPS, lighting ballaster, adapter, battery charger, home appliances, office equipment, and telecommunication applications. MECHANICAL DATA Case: DFS Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-compliant, comm

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DF1502S, DF15005S. Please refer to the document for exact specifications by model.

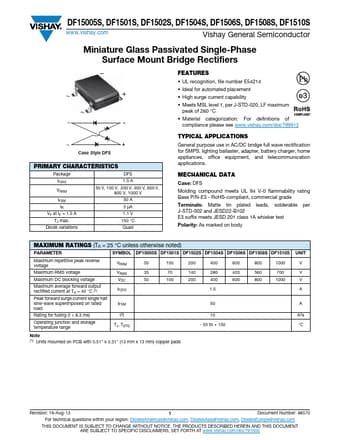

datasheet Preview Page 2 datasheet Preview Page 3
