DG2788 Dual DPDT/Quad SPDT Analog Switch

DG2788 Description

www.vishay.com DG2788, DG2789 Vishay Siliconix Low Voltage, Low On-Resistance, Dual DPDT/Quad SPDT Analog Switch .
The DG2788, DG2789 are monolithic CMOS analog switching products designed for high performance switching of analog signals.

DG2788 Features

* Wide operation voltage range: 1.65 V to 4.3 V
* Low on-resistance - RON: 0.4  typ. at 2.7 V
* Fast switching: tON = 47 ns tOFF = 15 ns
* miniQFN-16 package
* Latch-up current > 300 mA (JESD78)
* Material categorization: For definitions of complianc

DG2788 Applications

* requiring high performance and efficient use of board space. The DG2788, DG2789 are built on Vishay Siliconix’s low voltage process. An epitaxial layer prevents latchup. Break-before-make is guaranteed. The switch conducts equally well in both directions when on, and blocks up to the power supply le

📥 Download Datasheet

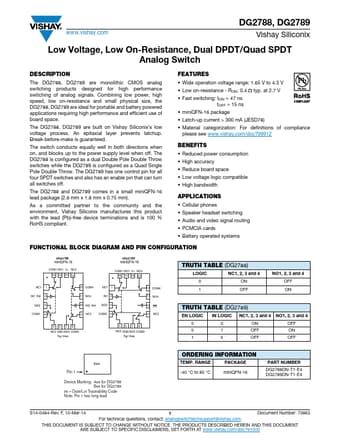

Preview of DG2788 PDF
