DG2788A

Dual DPDT / Quad SPDT Analog Switch

DG2788A Features

* break-before-make switching and low control logic threshold. The part supports rail to rail fast edge pulsing signals and have 0.1 ns/typ. propagation delay. It is ideal for both analog and digital signal switching in space constrain applications requiring high performance and efficient use of board

DG2788A General Description

The DG2788A, is a four-channel single-pole double-throw (SPDT) analog switch with two control inputs. It is also known as a two-channel double-pole double-throw (DPDT) configuration. The part is designed to operate from 1.8 V to 5.5 V single power rail. All switches conduct equally well in both dire.

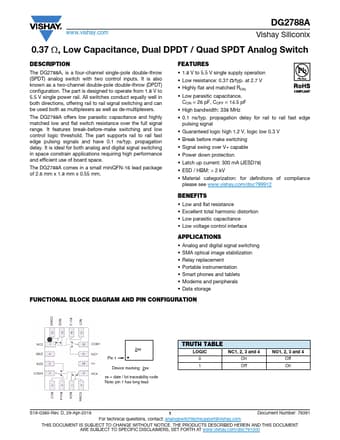

DG2788A Datasheet (231.24 KB)

Preview of DG2788A PDF

Datasheet Details

Part number:

DG2788A

Manufacturer:

Vishay ↗

File Size:

231.24 KB

Description:

Dual dpdt / quad spdt analog switch.
