DG2037 Datasheet, Switch, Vishay

DG2037 Features

  • Switch
  • Low Voltage Operation (1.8 V to 5.5 V)
  • Low On-Resistance - rDS(on): 3.0 Ω
  • Fast Switching - 12 ns
  • Low Charge Injection - QINJ: 10 pC
  • Low

PDF File Details

Part number:

DG2037

Manufacturer:

Vishay ↗

File Size:

91.50kb

Download:

📄 Datasheet

Description:

Dual spst analog switch. The DG2037/2038/2039 are dual single-pole/single-throw monolithic CMOS analog switch designed for high performance switching of analo

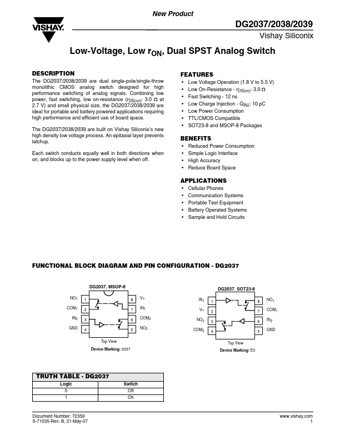

Datasheet Preview: DG2037 📥 Download PDF (91.50kb)
Page 2 of DG2037 Page 3 of DG2037

DG2037 Application

  • Applications requiring high performance and efficient use of board space. The DG2037/2038/2039 are built on Vishay Siliconix’s new high density low
