DG2041 Quad SPST Analog Switch

DG2041 Description

DG2041, DG2042, DG2043 Vishay Siliconix Low-Voltage, Low RON Quad SPST Analog Switch .
The DG2041/2042/2043 are quad single-pole/single-throw monolithic CMOS analog switch designed for high performance switching of analog signals.

DG2041 Features

* Low Voltage Operation (1.8 V to 5.5 V)
* Low On-Resistance - RDS(on): 1 
* Fast Switching - 14 ns tON
* Low Charge Injection - QINJ: 1 pC
* Low Power Consumption
* TTL/CMOS Compatible
* TSSOP-16 and QFN-16 Packages
* Material categor

DG2041 Applications

* requiring high performance and efficient use of board space. The DG2041/2042/2043 are built on Vishay Siliconix’s new high density low voltage process. An epitaxial layer prevents latchup. Each switch conducts equally well in both directions when on, and blocks up to the power supply level when off.

📥 Download Datasheet

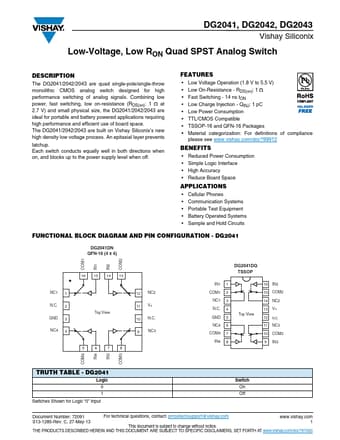

Preview of DG2041 PDF
